              • A tissue grinder for surface water chlorophyll a analysis
                •













              • DHFSTPRP-Ch24
                •

              • A tissue grinder for surface water chlorophyll a analysis
                •

              • 24*(0.2-0.5ML) /24*2ML
                •




                        developed specifically to meet the standard for chlorophyll a determination in water quality - "Spectrophotometric Method for Chlorophyll a Measurement in Water - HJ 897-2017" established by the Ministry of Ecology and Environment of China.




















						Application of Standard Method for Chlorophyll Extraction:





						1. Filtration: add magnesium carbonate suspension before filtration to prevent pigment decomposition. The negative pressure should not exceed 50 kPa.





						2. Chlorophyll extraction: place the filter membrane in a DHFSTPRP-Ch24 extractor, add 10 mL of 90% acetone solution, and grind at 1500-2000 rpm for 1 minute. The broken filter membrane floats the planktonic algae cells. After grinding, soak and extract at 4℃ in the dark for 15 minutes to 24 hours. Finally, centrifuge for clarification: centrifuge at 1000g for 20 minutes or filter, and transfer the supernatant to a stoppered glass vial.





						3. Measurement method: spectrophotometry. Use the tricolor equation to determine the absorbance at 664 nm, 647 nm, 630 nm, and 750 nm to calculate the chlorophyll a, b, and c contents. Use the single-color equation to determine the content of demagnesiated chlorophyll a after calibration.





						DHFSTPRP-Ch24 can simultaneously process 8×10mL centrifuge tubes, etc. for rapid cell disruption, cell lysis, and tissue homogenization.





						Sample grinding includes plant roots, stems, leaves, flowers, fruits, seeds, and certain animal tissues; it is particularly suitable for the extraction of nucleic acids, proteins, and other components in plant tissues. In addition, it can also crush yeasts, cultured animal cells, bacterial cells, etc. to extract their components.





						The three-dimensional integrated shaking mode makes the sample grinding more uniform and sufficient, with good repeatability of samples and no cross-contamination between samples. It is a true high-throughput grinding and oscillation system. Each sample can be completed in only 1-2 minutes.





						The Eupervs accessory can be selected for low-temperature grinding and preservation of temperature-sensitive samples.





















							Applicable Samples and Applications:





							1. Fast grinding preparation for PCR (polymerase chain reaction) of multiple samples.





							2. Rapid tissue homogenization for nucleic acid extraction, RNA/DNA extraction, and protein extraction.





							3. Lysis of yeast and bacterial cells.





							4. Pesticide/Insecticide analysis (sample processing for residual pesticides or toxic substances in food using LC/MS/MS).





							5. QuEChERS method (extraction of pesticides, antibiotics, and drugs).





							6. Extraction of active pharmaceutical ingredients (APIs).





							7. Food safety (contamination, adulteration, food traceability).





							8. Grinding and homogenization of biomass for biofuels.





















								Experimental Steps:





								homogenizer_tissuelyser





















									Main Features:





									• A specially designed grinder for extracting nucleic acids and protein components from plant samples.





									• High throughput: can simultaneously grind 8*10ml samples and is suitable for grinding samples of various sizes, greatly improving work efficiency.





									• Each sample can be completed in only 1-2 minutes.





									• In order to ensure the reproducibility, effectiveness, and comparability of the samples, the grinder can set the grinding time, grinding rate, and cycle times, to ensure the consistency between each grinding and the next, with a maximum time of 99 minutes.





									• Built-in with two safety locks and one sample chamber cover interlock, extremely safe and reliable.





									• Customized solutions for grinding samples of animals and plants at room temperature or low temperature.





									• The start and stop buttons allow the user to start or stop the grinding process at any time.





									• Optional uways low-temperature accessories for low-temperature grinding and storage of temperature-sensitive RNA and protein extraction samples.





















										Technical Specifications







										Application areas:

										Organ homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, and oscillation





										Processing capacity:

										24 samples can be processed simultaneously within 15 seconds, and it can be used with 12- and 24-position liquid nitrogen cryogenic adapters





										Compatible sample tubes:

										24*(0.2-0.5ML) /24*2ML /8*(5-15)ML /4*25ML /2*50ML, and various specifications of grinding tubes can be customized





										Display mode:

										Touchscreen display (for convenient and intuitive operation)





										Ten sets of experimental data can be stored:

										According to different experimental samples, animal heart, spleen, lung, kidney, bone, skin, and hair patterns are set up





										Cycle mode:

										According to the set experimental parameters, it can continuously cycle among several preset parameters, further reducing human interference





										Anti-vibration principle:

										Innovative anti-vibration principle DHFSTPRP-1, and a special three-dimensional vibration mode of up and down and left and right shaking, the sample moves in 8-shaped three-dimensional space, with innovative grinding ball motion mode to ensure ideal sample processing and instant crushing effect





										Maximum feeding size:

										No requirement, adjustable according to the adapter





										Final output particle size:

										~5μm





										Number of grinding platforms:

										(Accepts more than 2 grinding jars)





										Fastening device:

										With automatic centering and positioning





										Homogenization speed:

										0~70 Hz/second, working time: 0 seconds to 99 minutes, user can set it themselves





										Grinding ball diameter:

										0.01~30mm





										Grinding ball material:

										Alloy steel, chrome steel, zirconia oxide, tungsten carbide, and quartz sand





										Acceleration:

										Reaching high speed within 2 seconds





										Deceleration:

										Reaching low speed within 2 seconds





										Noise level:

										<55db





										Grinding method:

										Wet grinding, dry grinding, and low-temperature grinding are all possible





										Temperature control can be equipped:

										With the ability to upgrade to ultra-low temperature liquid nitrogen cooling or air cooling





										Adapter material:

										Polytetrafluoroethylene, alloy steel





										Safety instructions:

										With an automatic centering and locking device for safe operation throughout





										Grinding kit materials:

										Hard alloy, polytetrafluoroethylene (PTFE), zirconia





										Dimensions:

										630*300*480mm





										Weight:

										60 Kg

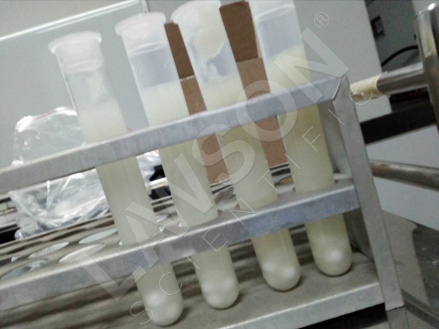

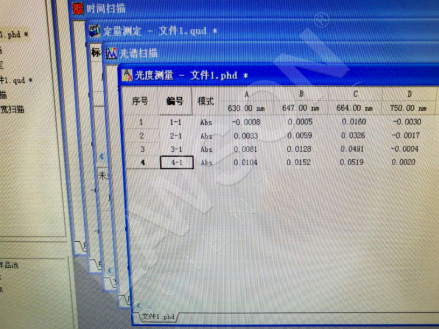

											Results of Surface Water Chlorophyll Tissue Grinder Experiment:







											homogenizer_tissuelyser









											homogenizer_tissuelyser























												Single Page - Color Page









												Name:

												Author:

												Action:





												A tissue grinder for surface water chlorophyll a analysis DHFSTPRP-Ch24

												homogenizer

												Download





















													Related products







													Name:

													Model:





													A tissue grinder for surface water chlorophyll a analysis

													DHFSTPRP-Ch24






























	Product List












                	        DHFSTPRP-Ch24
                            Unit





                	            Host Machine
                                Unit





                	            Adapters
                                set





                	            Cooling Adapter
                                Set





                	            Zirconia Grinding Bead No.5
                                Piece





                	            Zirconia Grinding Bead No.3
                                Piece





                	            Special Grinding Tube
                                Piece





                	            Special Bead Loading Gun
                                Set






















              Description


              1
              ?10ml,1（2 in 1）
              ?10or?15ml,1（2 in 1）
              1000（2 in 1）
              1000（2 in 1）
              200
              1（Optional）
