              • Digital Viscometer
                •

              • DHJ-8S
                •

              • Measurement range: 1 ~2×1000000mPa.s, Rotor speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm.
                •











              • DHJ-8S
                •

              • Digital Viscometer
                •

              • Measurement range: 1 ~2×1000000mPa.s, Rotor speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm.
                •

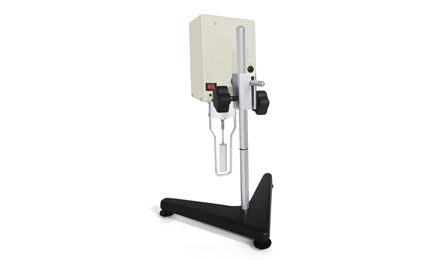

                        digital Viscometer  DHJ-8S features high measurement sensitivity, reliable test results, easy operation, and a stylish appearance. It is an instrument used to measure the absolute viscosity of Newtonian fluids and the apparent viscosity of non-Newtonian fluids. It can be widely used in the measurement of viscosity of various objects such as fats, paints, plastics, medicines, jewelry, coatings, and detergents.




















						Product Introduction





						Digital Viscometer DHJ-8S features high measurement sensitivity, reliable test results, easy operation, and a stylish appearance. It is an instrument used to measure the absolute viscosity of Newtonian fluids and the apparent viscosity of non-Newtonian fluids. It can be widely used in the measurement of viscosity of various objects such as fats, paints, plastics, medicines, jewelry, coatings, and detergents.





















							Product Features





							Digital Viscometer is a digital viscometer, driven by a motor and variable speed belt to ensure constant rotation of the rotor. As the rotor rotates in the liquid, the viscosity of the liquid produces a corresponding viscous torque on the rotor, which increases as the viscosity of the liquid increases and decreases as the viscosity of the liquid decreases. The viscous torque acting on the rotor is detected by a sensor, and the viscosity of the liquid being measured is calculated after being processed by a computer.





							Digital Viscometer uses microcomputer technology and can easily set the measuring range (rotor number and speed). It also performs digital processing of the data detected by the sensor and clearly displays on the screen the rotor number, speed, viscosity value of the measured liquid, and its full range percentage value during measurement.

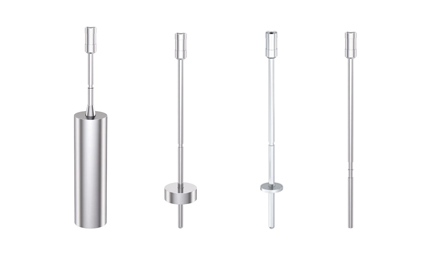

							DHJ-8S is equipped with 4 rotors (No. 1, 2, 3, 4) and 8 speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm), providing 32 combinations that can measure the viscosity of various liquids within the measuring range.





















								Technical Parameters







								Model:

								DHJ-8S





								Measurement range:

								1 ~2×106mPa.s





								Rotor specifications:

								Rotor 1-4, optional rotor 0 for low viscosity measurement up to 0.1mPa.s





								Rotor speed:

								0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm





								Automatic gear:

								Automatically selects suitable rotor and speed





								Operating interface language:

								Chinese/English





								Stable reading cursor:

								Vertical block cursor shows basic stability when it is full





								Measurement accuracy:

								±2% (Newtonian fluids)





								Power supply:

								AC 220V±10% 50Hz±10%





								Working environment:

								Temperature 5℃~35℃, relative humidity not greater than 80%





								Dimensions:

								370*325*280mm





								Net weight:

								6.8 kg





















									Single Page - Color Page









									Name:

									Author:

									Action:





									Digital Viscometer DHJ-8S

									Viscometer

									Download





















										Related products







										Name:

										Model:





										Viscosity

										DHJ-1S





										Digital Viscometer

										DHJ-8S





										Rotary Viscometer

										DHJ-5S
























	Product List












                	        DHJ-8S
                            Unit





                	            Host Machine
                                Unit





                	            Rotor 1-4
                                set





                	            Rotor 0
                                set





                	            Base
                                unit





                	            Protective cover
                                unit





                	            Lifting column
                                set





                	            A pair of pliers (one large and one small)
                                set





                	            Hexagonal socket head
                                piece





                	            Power adapter
                                set





                	            User manual
                                copy





                	            Warranty card
                                copy





                	            Certificate of qualification
                                copy






















              Description


              1
              1
              Optional
              1
              1
              1
              2
              1
              1
              1
              1
              1
