              • Handheld Ultrasonic Cell Disruptor
                •

              • UP-250S
                •

              • Power 250W, Crushing capacity 0.5-100ml
                •











              • UP-250S
                •

              • Handheld Ultrasonic Cell Disruptor
                •

              • Power 250W, Crushing capacity 0.5-100ml
                •




                        Handheld Ultrasonic Cell Disruptor can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, degassing, cleaning, and accelerating chemical reactions, etc. It is widely applied in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, and so on.




















						Product Introduction





						UP-250S Handheld Ultrasonic Cell Disruptor is a versatile and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and perform ultrasonic treatment on materials, greatly improving the stability and reliability of the instrument. This instrument can be used for the homogenization of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in the fields of biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology, and more.





















							Product Features





							Can be used for 96-well ELISA and numerous small test tubes. Handheld ultrasound transducer point control ultrasound, allowing multiple samples to complete ultrasound treatment in a short time.





							◆ Used for crushing animal and plant cells, bacteria, spores or tissue, extracting proteins from cells, and conducting scientific cultivation experiments for viruses and vaccines.





							◆ Speed up the reaction rate of chemical, physical and other reactions, and accelerate liquid degassing.





							◆ Used for scientific research analysis such as dilution of crude oil, oil-water emulsification, acceleration of crystal removal, and glass pulp preparation.





							◆ Used for dispersing rare earths, various inorganic minerals, and preparing nearly nanoscale latex homogenization mixtures.





							◆ Rapid and powerful high-precision cleaning of holes and blind holes in molds.





















								Technical Parameters







								Model:

								UP-250S





								Power:

								250W





								Power Range:

								1-100%





								Processing Volume:

								0.5-100ml





								Operating Frequency:

								19-25KHz, automatic search range up to ±450Hz





								Operating Frequency Display:

								Real-time display





								Display Mode:

								3.5-inch color LCD display





								Control Mode:

								Automatic or manual switchable (foot switch optional)





								Total Time Setting:

								0.1-999 min





								Pulser Time:

								0.1-99.9s adjustable (gap/working)





								Intermittent Time:

								0.1-99.9s





								Sample Temperature Protection Setting:

								Available (optional)





								Random Amplitude Rod:

								Φ3





								Optional Amplitude Rod:

								Φ2 / Φ6





								Protection Alarm:

								Over-temperature, over-current, overload, transducer abnormality, etc.





								Power Supply:

								AC110/220V F50/60Hz





								Mainframe Size:

								270*210*140 mm





								Total Weight:

								4.2 KG

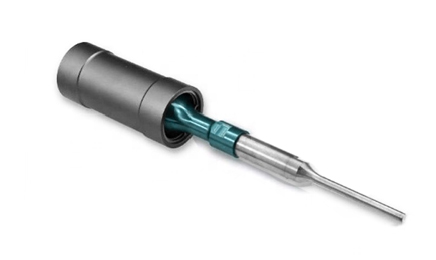

									Probe Model Selection







									Model

									Broken cell capacity





									Φ2mm

									150ul－5ml





									Φ3mm

									200ul－10ml





									Φ6mm

									10ml－100ml





















										Single Page - Color Page









										Name:

										Author:

										Action:





										Handheld Ultrasonic Cell Disruptor UP-250S

										Ultrasonic

										Download

























	Product List












                	        UP-250S
                            Unit





                	            Host Machine
                                Unit





                	            Vibration System (Transducer Assembly)
                                Set





                	            Transducer independent support
                                pair





                	            Temperature sensor
                                piece





                	            Soundproof box
                                set





                	            Power cord
                                piece





                	            Special Wrench (used for disassembling the amplitu
                                Set





                	            User manual
                                copy





                	            Warranty card
                                copy





                	            Certificate of qualification
                                copy






















              Description


              1
              1
              Optional
              1
              Optional
              1
              1
              1
              1
              1
