              • Multi Reax vortex
              • DMR-300
              • Amplitude: 3mm, Speed range: 300~3000rpm.
              • DMR-300
              • Multi Reax vortex
              • Amplitude: 3mm, Speed range: 300~3000rpm.
              High throughput is one of the daily challenges that analytical laboratories must address. To simplify these processes, we have developed a multi-point vortex mixer that is widely used in biological experiments, medical and health industries, materials, food, and chemical industries (such as saccharin and blood).
              Product Introduction
              High throughput is one of the daily challenges that analytical laboratories must address. To simplify these processes, we have developed a Multi Reax vortex that is widely used in biological experiments, medical and health industries, materials, food, and chemical industries (such as saccharin and blood).


              Product Features

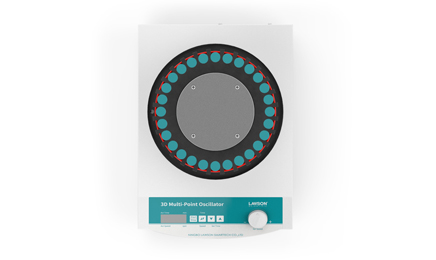

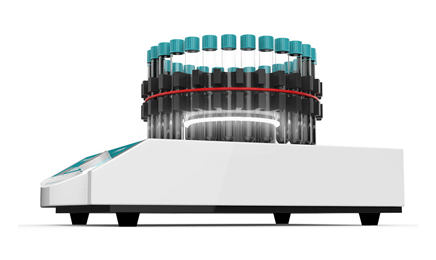

              · It can hold 16 tubes with a diameter of 16-32mm or 28 tubes with a diameter of 9-18mm, including thick-walled cuvettes, glass pressure tubes, Teflon-sealed reaction tubes, Nessler tubes, centrifuge tubes, organic glass tubes, high borosilicate glass tubes, etc. (with clip covers or screw-type covers).
              · The 3mm amplitude ensures excellent vortexing effect for large volume and difficult-to-dissolve samples.
              · The digital display of the rotation speed is continuously adjustable and can be adjusted within the range of 300-3000rpm.
              · The integrated timer can be set for up to 99 hours and 59 minutes (or 5999 minutes), and the vibration function will automatically stop after the set time, allowing for unmanned operation. After the task is completed, a prompt tone will be given, so that other tasks can be processed while preparing the sample.
              · It is bundled with a circular tie, which makes it easier to insert samples, and is equipped with an internal 24V LED light strip to visually display the mixing and vortexing effect of the samples.
              · Maximum load capacity of 1.8kg.
              · Protection grade IP30.


              Applications
              1. Food: additive content, organic hazardous substances
              2. Pharmaceutical analysis: traditional Chinese medicine pesticide residues, biochemical analysis of western medicine
              3. Agriculture and byproduct testing: QuEchERS, agricultural product residues, animal feed residues
              4. Environmental testing: water quality, soil


              Technical Specifications
              Model: DMR-300
              Control mode: Combination of buttons and knobs
              Display mode: Digital display
              Amplitude: 3mm
              Disk size: R50: Inner Φ14.2cm, Outer Φ27.2cm
              R15: Inner Φ14.2cm, Outer Φ25.2cm
              Adapter specifications: Can accommodate 16 tubes with a diameter of 16-32mm (30-50ml)
              Can accommodate 28 tubes with a diameter of 9-18mm (10-25ml)
              Standard accessories: 2 tube clamps
              Rotational speed range: 300 ~ 3000rpm
              Output power: 150W
              Motor type: DC motor (brushless)
              Angle: Three-dimensional
              Motion mode: Automatic reset
              Protection class DIN EN 60529: IP 30
              Timing function: 1 ~ 99 hours 59 minutes
              Maximum load: 1.8kg
              Operation mode: Timing or continuous
              Rotational speed setting: Numeric (knob)
              Allowable environmental conditions: Maximum relative humidity of 80% at 5 ~ 35 °C
              Linearly decreasing relative humidity up to 50% at 36 ~ 40 °C
              Size (w/d/h): 310 x 450 x 200 mm
              Weight: 17.05 Kg
              Rated voltage: 110-220V 50/60Hz


              Optional Special Adapter Bracket Selection
              Model Specification Applicable Test Tube Diameter
              R50 16*(30~50ml) Φ16~32mm
              R15 28*(5~25ml) Φ9~18mm


              Single Page - Color Page
              Name: Author: Action:
              Multi Reax vortex DMR-300 Vortexer Download


              Related products
              Name: Model:
              Multi Reax shaker DMR-400
              Multi Reax mixer DMR-200
              Multi Reax vortex DMR-300
              Product List
              DMR-300 Unit
              Host Machine Unit
              Special Adapter Bracket Set
              Power cord piece
              User manual copy
              Warranty card copy
              Certificate of qualification copy
              Description
              1
              1
              1
              1
              1
              1
